moladi building process

PROCESS

HOW IT WORKS

STEP 1

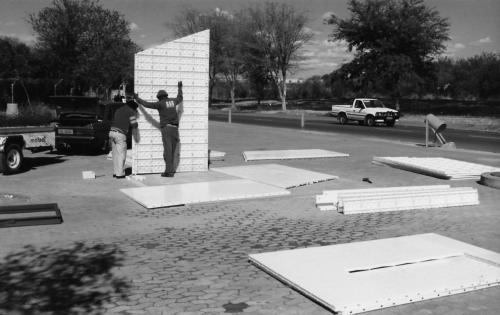

• moladi formwork is delivered to site. Area = 74m² Mass = 550kg Volume = 4m³ • moladi formwork panels are assembled by unskilled labourers to form the mould panels of the desired house plan.

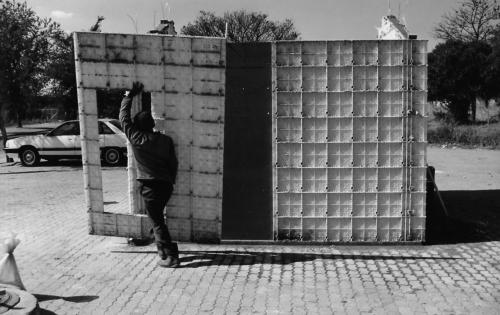

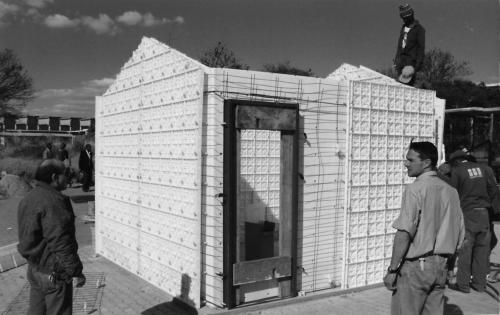

• Internal formwork panels are erected. • Window frames and block-outs are positioned within the wall cavity. • Reinforcing bars are positioned within the cavity to engineer specifications

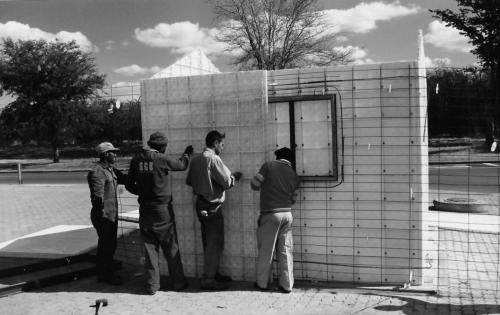

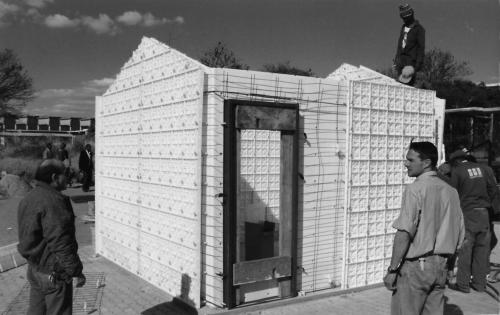

STEP 3 • Door frames and block-outs are positioned within the wall cavity. • External formwork panels are erected to close off the wall cavity. • Erection is completed in 4 hours with 4 unskilled labourers

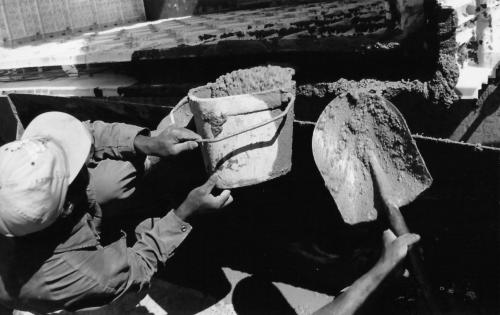

• The wall cavity is filled with 4m³ of moladi aerated mortar by unskilled labourers. • The pour is completed in 2 hours with 4 unskilled labourers.

• moladi formwork panels are removed. • moladi formwork panels are completely removed in 2 hours with 4 unskilled labourers.

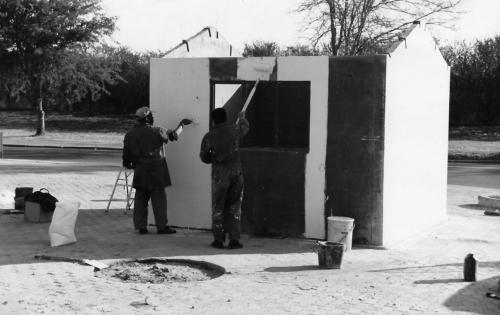

• Immediately after the formwork panels are removed, the walls are painted with cementitious water based paint. • Oil or acrylic based paints can be applied after the walls have cured, or in 28 days.

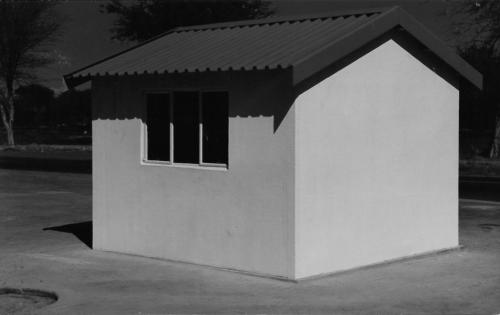

• The engineer certified roof is installed. • The windows and doors are installed. • Final finishing’s, such as sanitary ware and lighting are completed. • The structure is now ready for occupation.
